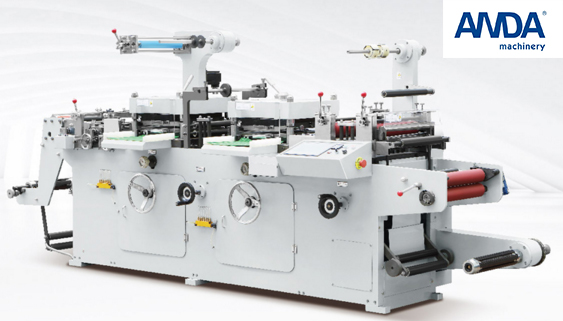

Double-Station Label Die Cutting Machine Model TMQ320D
Feature:
This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three photoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished in one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
Main Specifications:
Die Cutting Speed | 20-200 times/min |
Max. Web Width | 320mm |
Max. Die Cutting Width | 310mm |
Max.Feeding Diameter | 600mm |
Max. Die Cutting Length | 600mm |
Positioning Precision | ±0.1mm |
Main Motor Power | 5.5kw |
Weight | 2600kg |
Dimension(LxWxH) | 3700x1200x1600mm |
